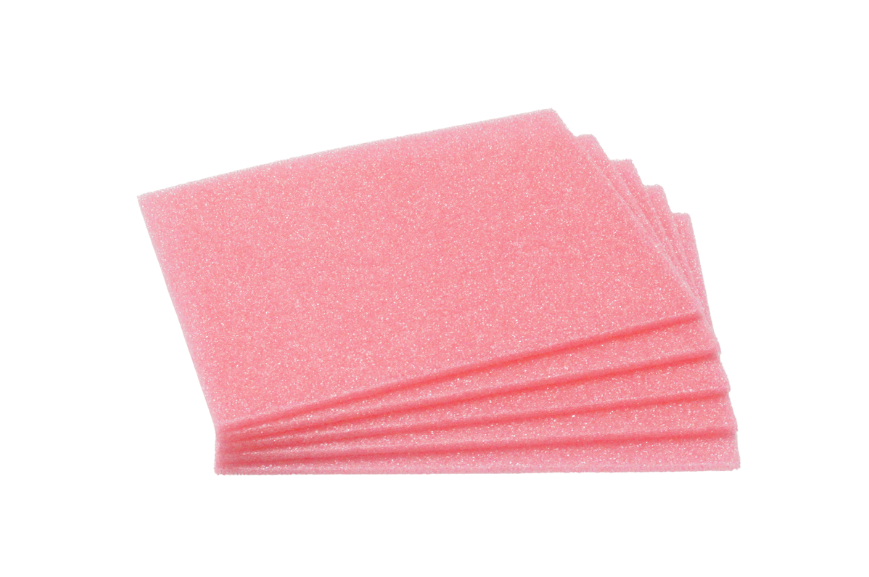

Electrostatic Dissipative Pink Closed Cell Foam

HD Static dissipative foam is a cost-effective, closed-cell material developed for protecting electrostatic-sensitive components during storage, handling, and transport. It provides reliable static dissipation with consistent surface resistance, helping reduce the risk of charge build-up in ESD-controlled environments while offering protection against impact and vibration. This versatile foam can be both routed and die-cut into inserts, profiles, and custom cavities.

Features

• Well suited for protective packaging and handling trays where shaped component support is required.
• Standard sheet size: 1.2 x 2.0m
• Density: 26kg/m3
• Rv <2 x 10-11 ohms
• ph water extract: 6.0
• Stock thicknesses: 6mm and 10mm

Supplied in a range of sizes and thicknesses. If you require a size not listed, please contact us.
