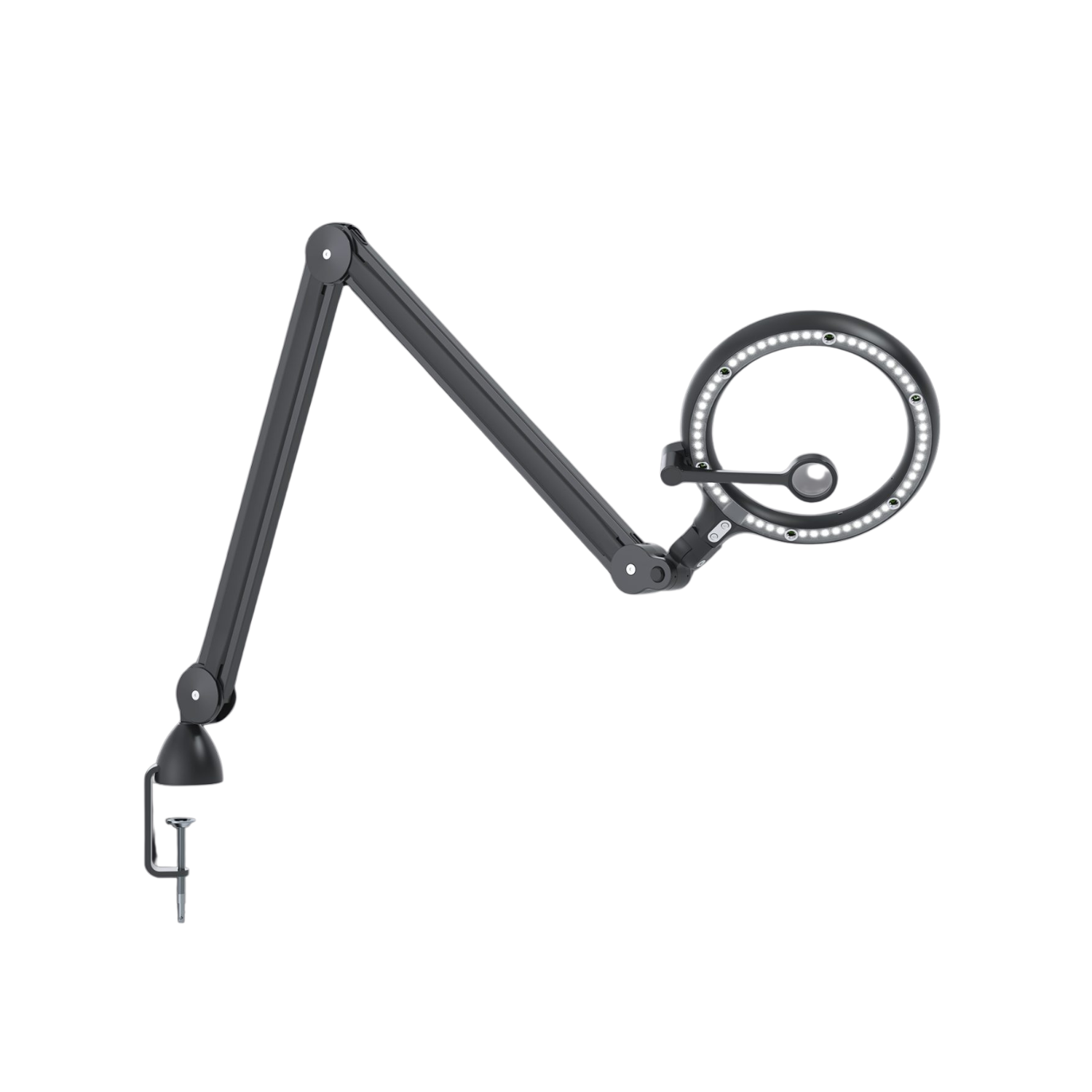

iQ ESD Daylight & UV Magnifier

The iQ ESD Daylight & UV Magnifier is made of carbon fibre and special conductive coatings guaranteeing full ESD compliance for the lifetime of the magnifier. With a 2-in-1 light source; the powerful Daylight LEDs ensure clarity as well as shadow-free illumination, while the UV-A LEDs are ideal for conformal coating inspection as well as thorough checking of soldered joints, welds and any other mechanical stress areas. It has a large optical quality glass lens (17.5cm - 7") and 3 dioptres (1.75X) providing the largest field of view for precise inspection of electronic components. Supplied with a 12 dioptres (4.0X) swing arm lens for inspecting fine detail. No adjustment necessary; the iQ ESD is specifically constructed using free motion joints instead of wing nuts, so it will always hold its position.

Specifications

• Light sources: Daylight LED & LED UV-A
• Lumens: 700
• Lux at 15cm: 6,000 and 4,000
• Colour temperature: 6,000K
• CRI: 95+
• UV wavelength: 365nm
• Energy consumption: 12W
• Colour: Black
• Long reach of 118cm
• 2 brightness levels
• Lens: 17.5cm (7")
• Lens Material: Optical quality low iron glass (ESD safe)
• H 61cm / W 53cm / D 10cm
