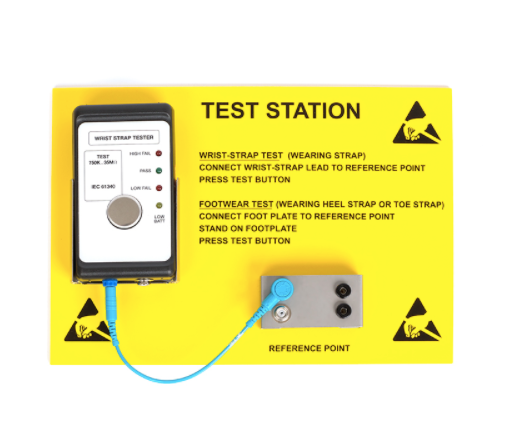

Wrist Strap Tester - CT5000

Portable wrist strap tester designed to check the continuity of installed wrist straps and cords. This device includes a 4mm banana socket and a 10mm male stud, requiring a 9v battery for operation. It can function independently as the WST1 unit or can be purchased as part of our wall-mounted test station, the WST2. Ideal for ensuring reliable performance in your electrostatic discharge (ESD) protection system.

Features

• Tests wrist straps at EPA entrance
• Wall mounted via backing plate and complete with 9v battery
• LED's indicate pass, high or low fail and low battery
• Audible signal indicates 'pass'
• Supplied with calibration certificate

Technical Specifications

• Weight: Lightweight at just 350g for easy handling.
• Accuracy: Maintains a consistent +/- 10% accuracy rate.
• Dimensions: Compact size at 130mm x 70mm x 25mm, making it portable and space-efficient.
• Electrical Data: Operates on a 9v supply – PP3 Alkaline Battery, ensuring long-lasting performance.
• Operating Temperature Range: Efficiently functions within a temperature range of 5°C – 49°C. It also boasts a safe storage temperature from -15°C to +60°C.
• Relative Humidity: Operates optimally at 0% – 90% non-condensing humidity, guaranteeing reliability in various conditions.
• Repeatability: Offers dependable repeatability with an error margin of +/- 10%.
• Test Voltage: Utilises a nominal 9v stepped to 100v, ensuring thorough and safe testing.

Contact us for more information on this portable wrist strap tester.
